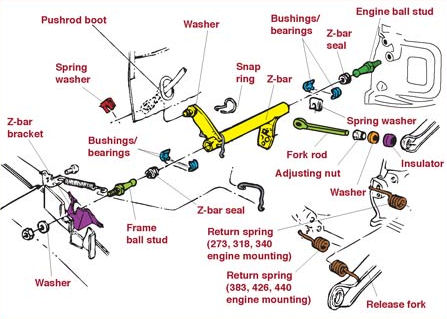

In addition to offering standard and deluxe clutch rebuild kits, we offer components individually.  This diagram will identify the various components available.

Individual components:

#1 Engine Ball Stud – FD61765
#2 Frame Ball stud – FD61766
#3 Z-bar Seal – FD65942
#4 Bearing (4 required) FD65938
#5 Washer (2 required) FD5086
#6 snap ring – FD1910
#7 Spring washer – FD5085
#8 Fork Rod – FD9401 (66-67 B-body)
#8 Fork Rod – FD67235
#9 Washer – FD61483
#10 Insulator FD19412
#11 Adjusting nut – FD30979
#12 Return Spring – FD43705
#13 Z-Bar bracket – A0241
Fork rods are 5″ long.
7″ fork rod is part # HF57
